DN2000 Boiler/Heat Exchanger Stainless Steel Tubes/Tubing

stainless steel tubes DN800 DN2000 gofar new material

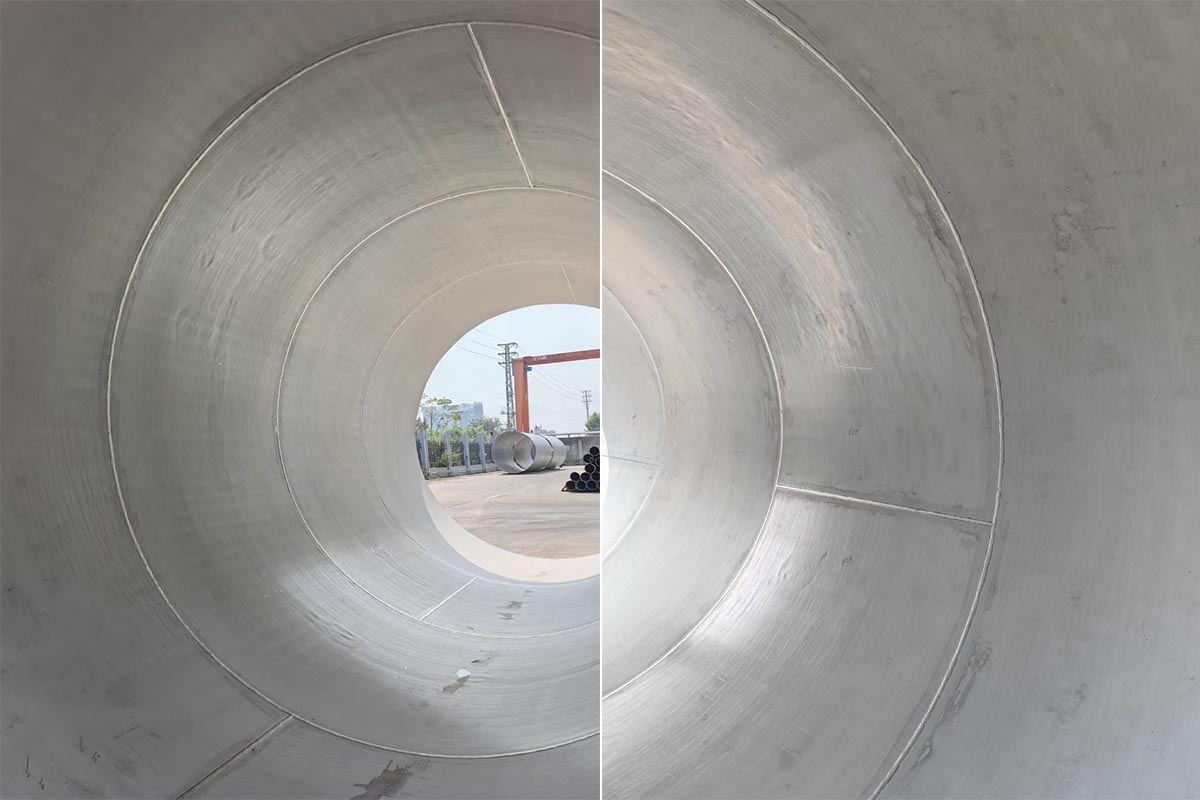

DN2000 stainless steel pipes for energy and power station projects

stainless steel tubes DN500 DN2000 gofar new material

DN2020 stainless steel tubes for energy and power station project

WT: 1.0-30mm

OD: 20-3000mm

L: 1000mm-6000mm

Tolerance: OD+/-10%, WT+/-10%, L+/-10mm

Material: 304, 316L, 321, 904L, 317L, 310S, 2205, 2507, etc.

Affordable pressure: 100 bar

Standard: ASTM, AISI, JIS, GB, DIN, EN

Certificate: ISO9001, ISO14001, PED-2014, etc.

Features:

CNC large caliber stainless steel welded pipe making equipment. Online bright annealing, smooth weld seam and surface. Stringent inspection flow, spectral analysis/X-rays/eddy current test/water pressure test, etc. Non-standard sized pipes also available. Affordable pressure 100bar.

Regular Specification:

Φ32*1.2*6000, Φ38.1*1.0*6000, Φ50.8*1.2*6000, Φ168.3*3.0*6000, Φ325*6.0*5800, etc.

Applicable Standards:

GB/T24593 Welded austenitic stainless steel tubes for boiler and heat exchanger ASTM A249 Welded austenitic steel boiler, superheater, heat exchanger and condenser tubes DIN EN10217-7 Welded steel tubes for pressure purposes JIS G3463 Stainless steel boiler and heat exchanger tubes

Applications:

Widely applied in medium and low pressure heat exchangers, boilers, radiators, heaters, coolers, condensers, evaporators and reboilers, etc.
