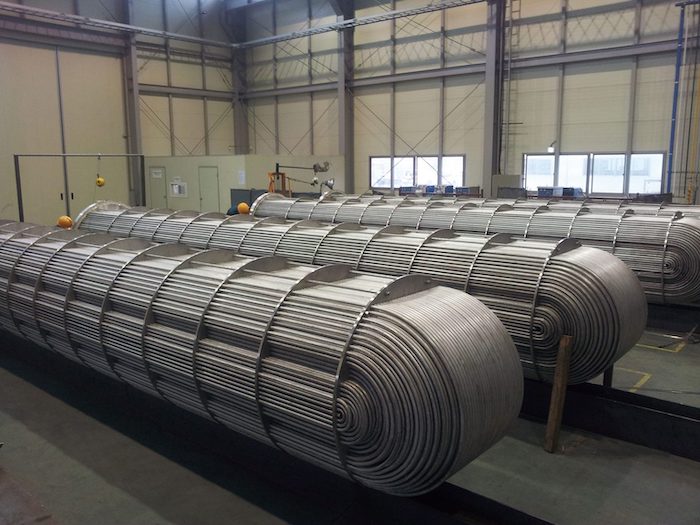

OD9.52 Stainless Steel Pipes for Heat Exchanger Tubing

stainless steel tubes heat exchangers tubing

Gofar heat exchanger stainless steel pipe tubing

OD: 4-51mm

WT: 0.4-1.5mm

L: 28mm-6000mm

Tolerance: OD+/-0.1, WT+/-0.1, L+/-0.3mm

Material: 304/1.4301, 304L/1.4307, 316L/1.4404, etc.

Finish: W2A, W2R, W2Rb, etc.

Standard: ASTM, AISI, JIS, GB, DIN, EN

Certificate: ISO9001, PED-2014, ISO14001, etc.

Features:

Precision stainless steel welded pipe/tubes with smooth weld seam and surface. Bright online annealing treatment, 100% eddy current test and leak test according to ASTM-A249, A269, JIS G3463, GB151, etc. to achieve precise dimension control.

Regular Specification:

Φ9.52*0.7, Φ12*1, Φ38.1*1.2, Φ50.8*1, etc.

Applicable Standards:

GB/T12771-2008 Welded stainless steel pipes for liquid delivery GB151 Tubular heat exchanger (appendix C) ASTM A249 Welded austenitic steel boiler, superheater, heat exchanger and condenser tubes JIS G3463 Stainless steel boiler and heat exchanger tubes

Applications:

Widely applied in boiler and heat exchanger tubes, thermal power piping, dyeing machines, condensers，seawater desalinations equipment, etc.
